This LWIR uncooled thermal imaging module is a matured and high reliable product independently developed by our company. It utilizes high-quality material and top-end manufacture technology. Currently, it has been widely used in the aerospace, aviation, military, armed police, public security, customs, security, monitoring, petroleum, chemical, electric power and other industries
idely used in the aerospace, aviation, military, armed police, public security, customs, security, monitoring, petroleum, chemical, electric power and other industries.
Technical Specification
| Model | UWA384CX-H09-F |
| Type | VOx Uncooled Infrared LWIR |
| Array format | 384×288, 25μm |
| Spectral response | 8~14μm |
| Power consumption | ≤1.7W@25℃ |
| Power supply | DC 6.5V~13V |
| Time to image | ≤20s |
| Operating temperature range | －40℃~+60℃ |
| Storage temperature rage | －55℃~+70℃ |
| NETD (@1/f. 25Hz) | 40mK |
| Focus motor driver | PWM adjustment |
| Video output | 2 channel Analog video output, PAL formats |
| Communication interface | RS422 |
| Main control function | Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment, Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset |

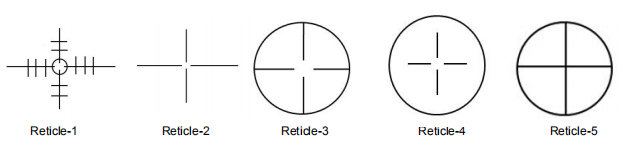

| Five type reticle |  |
| Size | 46mm×48.9mm×42mm |
| Weight | ≤90g |
